The Minkowski Diagram and the Misrepresentation of Spacetime


November 2, 2007
Uncategorized

Introduction

The prevailing concept of spacetime is due primarily to Minkowski’s geometrical contribution (1908) to Einstein’s Special Theory of Relativity. Minkowski saw in the relativistic interpretation of the Lorentz transformations the possibility for a two-dimensional representation of the peculiar interrelationships between bodies having large relative velocities. Assuming the validity of the tenets of Relativity, and assuming the correctness of the chosen geometric representation, it was expected that a graphic portrayal would express and corroborate relativity in its mathematical form, that “physical laws might find their most perfect expression” (1908, 76), facilitating further insights and hypotheses concerning the nature of spacetime. It is my intention to show that while the original expectations remain justified, the spacetime diagram as developed by Minkowski is inherently flawed, and its axiomization has fostered significant misunderstandings about the nature of spacetime and light.

1. The Minkowski Diagram

The basic concept of the Minkowski Diagram is to use a single dimension to represent the three spatial dimensions so that one remains available for representing time in a realistic two-dimensional projection. Minkowski first presented the diagram as a derivation of a hyperbolic function (c2t2-x2 = 1), but this approach was rendered comparatively cumbersome by subsequent variations. Figure 1 is an example of the most popular version today. As is typical of Minkowski diagrams, the x-axis represents space, while its perpendicular, the t-axis, represents time — both according to an observer S who is considered to be at rest and moving in time along the t-axis.1 The coordinate axes x’ and t’ represent the reference frame of an observer S’ who is in motion relative to S; t’ is given by x-vt = 0 (where v is the velocity of S’ relative to S), and x’ is given by x/t = v. The diagonal vector determined by x = t is considered to represent the world-line of light emanating from the origin O.

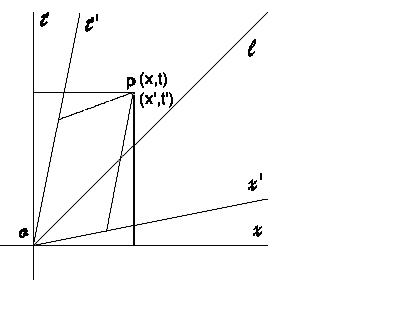

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 1

Given this basic construction, any event P in spacetime will be located by observers in the diagram as a point at the intersection of lines drawn parallel to their spacetime axes. For S the coordinates in Figure 1 are (x,t), while for S’ they are (x’,t’). The difference between the two measurements may be derived geometrically by means of “calibration hyperbolae” given by x2-t2 = constant, from which the unit of measure for S’ can be obtained from the measure of S, or they can be derived mathematically by the Lorentz Transformations.2 The geometric depiction of the relationship thus seems to parallel the mathematics, as is a minimum requirement of any diagram intended as a meaningful representation.

Whereas the Minkowski Diagram in the form shown in Figure 1 is especially designed to depict the differing observations of the same event which result from having different frames of reference (relative motion), a variation as shown in Figure 2 is concerned with the different paths in spacetime (the “world-lines”) of the observers or bodies themselves. In this diagram the reference frame and world-line of the primary observer is given by vector A; vectors B, C, and D are bodies in motion relative to A, with D being a light-quantum traveling along one of the l-vectors, which represent the travel of light impinging upon and radiating from the origin O. The paths of the vectors in relative motion are given by the equation for transforming the primary observer’s time-axis as in Figure 1 (x-vt = 0).

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 2

Still another variation on the Minkowski Diagram is given in Figure 3, where the interval between two events in the reference frame of a primary observer is compared with the corresponding measures between the events according to various other references. The coordinates described by these observations may be obtained from the Lorentz Transformations, or more readily by the equation for the “invariant interval,” where the proper time s of a body in its own frame of reference is compared to its relative spatio-temporal motion according to other frames by s = (x2-t2).5. By plotting a set of hypothetical observations, a parabolic pattern is formed, with the proper time of the primary observer at the vertex and the coordinates of the observations from the more extreme reference frames approaching the light-vectors.

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 3

2. The Fundamental Concepts

The various Minkowski Diagrams share two fundamental concepts which (in addition to the seminal insight concerning the geometric nature of the spatio-temporal relationship) comprise the important contributions of the diagrams to the current understanding of spacetime. One concept is of a parabolic geometry of spacetime, which is thought to supersede the classic notion of flat “Euclidean” space. Even aside from the influence of gravitation, the nature of the equations for transforming coordinates has suggested a parabolic relationship between uniform frames of reference, a function that approaches Euclidean flatness only when relative motion is small relative to c. This can be seen in the comparison of unit length between frames, as obtained in Figure 1 with the “calibration hyperbolae,” and in the parabolic pattern in Figure 3 formed by the comparison of observed motion with proper time.

The second concept is of the “light-cones,” the consideration of which has had an enormous influence in shaping subsequent thought about the nature of spacetime, especially in cosmology. From the recognition that it would be impossible for an event to be observed if it were to take place beyond the reach of the fastest signal, and from the graphic representation of that limit with the light-vectors in the Minkowski Diagrams, it has been concluded by some that there exists an “elsewhere,” a set of events lying outside the light-cones which is effectively beyond our spacetime world of experience. Attempts have been made by the more speculatively-inclined to understand everything from black holes to anti-matter in terms of this apparent boundary, and if nothing else the light-cones have consumed a considerable amount of theoretical energy.

Both concepts, of a parabolic geometry and of the light-cones, have seemed to follow from the geometric representation of the tenets of Special Relativity and to have gained credence from that distinguished association. But I wish to show that both are in fact based on a fundamental mistake in the geometric translation of Relativity, the correction of which exposes them as being without foundation.

3. The Discrepancy

There is certainly no more important precept in relativity theory than the stricture that in describing the motion of a body we must specify the frame of reference from which the observation is being made. When it’s stated, for instance, that a body travels 3 light-seconds (ls) in 5 seconds (sec), unless we’re to return to the absolutism of classical physics, we must specify according to whose standard of distance, and according to whose measure of time. If it is to be assumed that unless otherwise stipulated the measurements given are those of an observer at rest in the same reference frame as ourselves, the statement actually consists of an observation that a body travels 3 ls in space relative to the observer (and ourselves), while we travel 5 sec in time. Although this may be useful in so far at it accounts for two aspects of the relationship, it remains inadequate as a description of the relative motion of the body itself. To fully describe the observed motion relativistically would be to report that a body travels 3 ls in space relative to our stationary spatial reference, and a number of sec in time that is relative to our corresponding temporal reference of 5 sec, given by (x2-t2).5, which in this case yields (52-32).5 = 4. Strictly speaking, therefore, the body will travel 3 ls and 4 sec (its clock will be observed to tick 4 seconds), and we will measure that travel from a reference of 0 ls and 5 sec.

The significance of the distinction being made here is most striking in the description of light: When it’s said in a Newtonian perspective that light travels 1 ls in 1 sec, we make a relativistic correction and say that it actually travels 1 ls relative to our state of rest in space (although our spatial reference is arbitrary in the special case of light) and 0 sec relative to our motion in time.

To neglect either of these distinctions is to invite a serious error in the development of one’s understanding of relativistic phenomena. Yet it’s an oversight built right in to the Minkowski diagrams, as I will attempt to demonstrate.

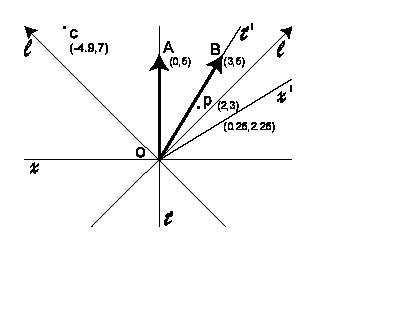

Figure 4 is a composite of the various Minkowski diagrams already discussed, and will serve to illustrate the permeation of a pre-relativistic confusion inherent to all of them. Vector A again represents the primary observer who is at rest in the coordinate system defined by the x and t axes, and who is located initially at events (0,0) and ultimately, after 5 sec, at (0,5). Vector B represents a body in motion having the coordinate system defined by the x’t’ axes; B is located by A after 5 seconds at (3,5). Point P is an event located by A at (2,3) and by B, according to the Lorentz Transformations, at (0.25,2.25). Point C represents the measurements of an observer who locates A at the completion of the interval represented by the diagram at the coordinates (-4.9,7.0).

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 4

Let’s examine the various features of Figure 4 in terms of Relativity. First, if A is considered to be at rest and measuring its own time interval as t = 5 sec, we know that its observation of the clock of any other body will be given by t’ = t (1-v2).5. If a body is in motion relative to A, this will yield a value for t’ that is less than t, reflecting the fact that a moving clock, i.e., relative motion in time, slows when there is relative motion in space. Yet the Minkowski Diagram depicts the world-lines of bodies in motion as attaining the same temporal ordinate as the rest frame — note, for instance, vector B, and the light vectors, in Figure 4. This is not just an oversight, nor is it a misrepresentation of the intent. It’s an error upon which the spacetime diagram in its present form is founded. The notion of the light-cones, which may be taken as characterizing the format of the Minkowski Diagram, is what makes this conclusion unavoidable. The light vectors, representing the limit c, are projected according to relative motion in space, but according to the observer’s own time, treated as an independent, absolute measure. This is a remarkable misrepresentation, given that it’s axiomatic in relativity theory that light would not travel 5 ls in 5 sec relative to observer A in the diagram — it would travel 5 ls in 0 sec, and it should therefore be drawn directly along the x-axis in an accurate projection. To portray light as traveling along the diagonals is not only to produce a distortion of the relative motion of light, but of any world-line in the diagram, because as limits, the placement of the light-vectors requires that all coordinates representing relative motion be delimited accordingly.

The location of event P in Figure 4 displays a similar sort of misrepresentation, as the clocks of the observers are superimposed on the event, treated as an instantaneous object of observation. The coordinates of P in the diagram, whether according to A or B, express a spatial relationship between event and observers, appropriately enough, but not so the given temporal ordinates, which represent the distance in time of each observer from her own earlier reference points (where t and t’ = 0 according to A). Relativity theory holds that it’s meaningless to project an observer’s clock at the location of a distant event — there is no time of an isolated event, no duration to express in comparison to the motion in time of various observers; there are, according to Relativity, only times as registered by the observers as an event is detected.

It is important to keep in mind that a spacetime diagram is a representation of process — it projects the world of an observer as it develops relative to an observer who moves in time — and because a diagram is unavoidably static, the time-vector of the observer can easily be mistaken as somehow leaving space behind, on the x-axis. But at any moment represented in the diagram the observer’s time-vector is still actually in space, on the space-axis, and an isolated event — no matter when it occurs — takes place somewhere in the observer’s projection of space. So to portray an event in a spacetime diagram, it’s best understood as taking place on a world-line, at a time corresponding to a clock traveling along the world-line. If it’s an isolated event it could be placed on the space axis, where it is taken as occurring when t = 0 in the primary observer’s frame of reference, when the time of the event can be considered null.3

Before leaving Figure 4, there is one additional consideration, the significance of point C. The anomaly in this case is that while we know that a rest frame represented by the x,t axes will undergo more motion in time than it will observe in any other (in other words, the clock of any other reference frame will appear to be moving more slowly), the coordinates of C place it at t = 7 relative to t = 5 for the rest frame of A. This is because the coordinates at C (-4.9,7) express the measure of some observer’s own proper time and observed spatial distance attained between O and A corresponding to the given measure of A at 0 ls and 5 sec. The observations of one reference system have thus been superimposed upon another, without any actual congruence between the observation and the x,t axes. The coordinates of point C and the form of diagram in which they appear (Figure 3) actually depict relative measurement, not relative motion; the x,t axes are used both as a reference system for the primary observer and as a matrix for the superimposition of other observations. There may be nothing inherently wrong with superimposing reference frames in this manner, except as with the location of events according to an absolute standard of time, it is done in the Minkowski Diagrams in a way that misrepresents the relativistic reality in a pre-relativistic, two-dimensional projection.

4. An Alternative Diagram

The relativity of spacetime imposes the requirement that in any portrayal of the motion between frames of reference we take the perspective of one at a time, and maintain it consistently as we determine the progress of the other(s). Figure 5 is a construction of such a procedure. Vector A represents the motion of an observer whose frame of reference is described by the coordinate axes x,t. A travels 5 sec in time in the scope of the diagram while being considered at rest in space. Body B, which as a matter of convenience is located initially at O, moves away from the vicinity of A at a rate, according to A, which takes it 4 ls in 5 sec. The coordinates of B (4,3) can again be derived from the Lorentz transformations, or geometrically by means of the gradations in the diagram. By locating B at 3 seconds in time, it is indicated that the clock of B has moved 3 sec in the reference frame of A.

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 5

Note that the world-line of B in this alternative diagram is especially interesting in its contrast with the world-lines of the Minkowski Diagrams: At a velocity of .8c relative to A, the vector of B has already transgressed the 45o angle of the “light-cones”; in fact, as can be verified easily enough, a 45o angle to the coordinate axes in Figure 5 would represent a velocity of only .71c. A consideration of higher relative velocities can provide an appreciation that the vectors representing their motion will approach the x-axis as the limit c, and that a vector representing the motion of light will travel directly along the axis.

5. A Reevaluation of the Minkowskian Concepts

The two fundamental contributions of the Minkowski diagrams to our idea of spacetime can now be reevaluated in view of the foregoing discussion. The concept of the parabolic or “Lorentz” geometry of spacetime is a residue of the pre-relativistic nature of the diagram: Given the absolute treatment of the temporal perspective in the Minkowski Diagram, all vectors except the world-line of the primary observer are distorted by a parabolic function simply because their motion in time is confounded with that of that observer. The same sort of function results from the attempt to correlate an instantaneous point with other events located at coordinates given by relative spatial distance but the observer’s absolute temporal orientation; this has been supposed to be a relationship of independent points, but is actually just the relationship of a frame of reference to its own absolutized temporal perspective. It is the misrepresentation of Relativity, not Relativity itself, that is responsible (in terms of non-accelerating frames of reference) for the concept of a non-Euclidean geometry of spacetime.

Secondly, the “light-cones” have been made to disappear by a rigorous relativistic representation of relative motion. In their place, in two-dimensional terms, is a circular boundary as shown in Figure 6, formed by the projection of possible world-lines emanating from and impinging on O. The boundary of the circle isn’t the horizon of an exotic “elsewhere,” but simply the limit imposed by the temporal scope chosen for the particular diagram.

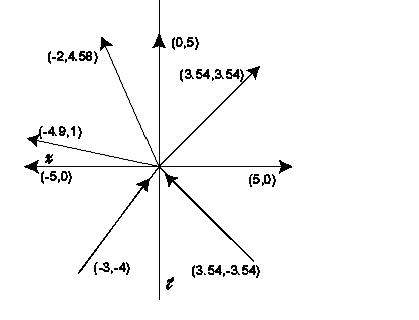

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 6

6. Exploration of the Alternative

The most outstanding feature of the alternative diagram is the Euclidean triangle formed by the relationship between an observer and a body in motion, as shown in Figure 7. Vector A describes the time it takes according to observer A for body B to reach its x-ordinate at the termination of the diagram; these measures are given in Figure 7 as t sec and x ls, respectively. The temporal ordinate t’ of vector B is, once again, given by the Lorentz transformation, or by the equation for the invariant interval. Vector A thus relates to x and t’ as a hypotenuse to a Euclidean triangle; and since vector B constitutes the actual hypotenuse of that triangle, it follows that regardless of the relative velocity between the two bodies, their world-lines will be the same length. This suggests that uniform motion in spacetime may be relative, but uniform motion itself is absolutely equivalent across reference frames.

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 7

Another interesting feature of the relationship between bodies according to the alternative concerns the “invariant interval.” In the Minkowski Diagrams, and in Relativity theory in general, the Interval is conceived as no more than the “separation,” an apparently fortuitous constant without physical significance, generally termed as the square root of the difference between the spatial distance between events according to the observer (squared) and the time according to the observer (squared) — i.e., s = (x2-t2).5. This formula has seemed to require the introduction of the imaginary number i, the square root of a negative. In terms of the alternative, it’s just a misrepresentation of the actual relationship given by t = (x2+t’2).5, or t’ = (t2-x2).5. In these latter expressions, and in the graphic representation, the interval is comprehensible as an actual physical measure, the proper time of the body being observed.

It is arguable that the two-dimensional depiction of the relationship between observer and a body in motion in the alternative diagram expresses the actual relativistic relationship, at least in terms of the gravity-free spacetime motion between bodies according to one frame of reference. If we are to consider the alternative to have heuristic value it is reasonable to expect that it can somehow render the reversal of frames geometrically comprehensible, and Figure 8 demonstrates the manner by which such a transformation can be effected, expanding on the relationship depicted in Figure 5.

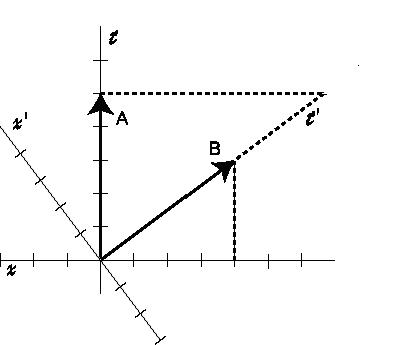

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 8

First, based on the principle that vector B, while skewed relative to A, is at rest in its own frame with A considered to be in motion, the x’-axis is drawn perpendicular to B in order to represent its spacetime orientation relative to A. Now since it is desired to view A as it appears to B concurrent with A observing B at the coordinates (4,3), the temporal ordinate of B must be determined relative to the proper time of A, which is 5 sec.4 To find this mathematically it is reasoned that if B measures the temporal motion of A as 5 sec, and if by the reversal of frames A is now taken to be traveling at .8c, then by the Lorentz transformations (t’ = t / (1-v2).5), the clock of B in its own frame is 8.33 sec; the ultimate distance between A and B according to B is given by x’ = x / (1-v2).5, which yields 6.67 ls.

To achieve the same result geometrically, it can be derived by extending the vector of B in Figure 8 to the point B’ where it would intersect a line drawn from A parallel with the x-axis, as this forms a Euclidean triangle in which vector A and the distance along x between A and B’ relate to B’ as a hypotenuse. And since the angle ? (read “?” as the Greek letter Theta as represented in Figure 9) between vectors is the same in either spacetime orientation, B’ relates to A as the measure of proper time as A had related to the proper time of B. This is proven by the following:

B’ = A csc ?
= 5 * 5/3
= 8.33
while x’ is given by
x’ = A cot ?
= 5 * 4/3
= 6.67

This result from the perspective of B is given in Figure 9. Vector A is extended to A” at a length that will equal that of B’ in accordance with the earlier postulate of the equivalence of world-lines; at this point the spatial distance of body A from the origin according to B is exactly what we would expect mathematically, as is its proper time.

The Minkowski Diagram and the Misrepresentation of Spacetime

Figure 9

Two bodies having different frames of reference are thus simultaneously represented both as they appear to themselves and to each other, and a diagrammatic symmetry corresponding to that of the four-dimensional relationship is achieved. This result should not be surprising, because once the misconception that the relationship between two bodies in uniform motion is non-Euclidean has been corrected, it is to be expected that the spacetime structure (abstracting from gravitation) can be accurately represented in a two-dimensional Euclidean projection. The Lorentz Transformations presume, after all, a simple perpendicular relationship between space and time; and although the relationship between particular temporalities given by t’ = (t2-x2).5 is indeed parabolic, the fact that a hypotenuse relates to its sides by a parabolic function presupposes the right-angle of a Euclidean triangle. The parabolic relationship between different reference frames should therefore be understood as derivative and incidental to the essential Euclidean relationship between world-lines.

Several significant corollaries can be derived from the consideration of the two-dimensional depiction of spacetime. The representation of motion in spacetime as a relative variation from the perpendicular structure suggests that the distortion of time between frames is just the product of the perspective from which one views a motion which is — no matter what its spatial or temporal components — entirely homologous: Motion in space can be regarded as motion in time slightly skewed, while motion in time, although it seems to be something quite distinct, is simply the same sort of motion but in a perpendicular “direction.” This idea, if not new, is nonetheless translated into a coherent picture in the alternative, with a potential for the greater clarification of our concept of time.

Another significant entailment of the alternative illuminates the otherwise perplexing contradiction wherein two bodies can each be at rest and yet also in relative motion. In the coordinate system of A in Figure 9 the vectors A and B’ each have an equal extension in time, while in the coordinate system of B, vectors B and A” have an equal temporal extension. Thus from either frame of reference there is a suggestion of an underlying simultaneity between the temporal position of a body at rest and that of a body in motion when the one in motion is observing the one at rest; the instant of observation according to one frame takes place at another instant according to the second, but that latter instant coincides with precisely the same distance in time according to the first. Despite their differing individual orientations in spacetime — despite the relativity of motion — each body in uniform motion is moving orthographically in spacetime, and at a rate identical to all others in uniform motion. The paradox can be attributed to a dichotomy between finite references and a non-finite spacetime structure. But the exploration of this and other entailments of relative motion according to the alternative can best be undertaken in another context.

7. On the Nature of Light

A further consideration worth making here is of the nature of light as it is suggested by the alternative diagram. We know that the proper time of light is zero when measured from any other reference frame. This peculiarity is given by the mathematics of Special Relativity, although it’s not made strikingly evident by that more abstract form of representation, and although the Minkowski Diagram has tended to obfuscate the fact. In the geometric translation of the alternative diagram this zeroing of temporal motion is quite graphically revealed as suggesting that light literally does not move in time – and not just relatively so, because all coordinate systems agree on the motionless clock.

It may be arguable that is makes just as much sense to say that from the frame of reference of a photon, only light moves in time, but that issue is secondary here – either way, there is an explanation available for what has otherwise been accepted as inexplicable.

There are two characteristics of light that are distinctive and comprehensible in terms of the diagram if light doesn’t move in time, at least from the frame of reference of non-luminous bodies: As is well-known, the velocity of light is both invariant and ultimate. If uniform temporal motion is, by the equivalence of world-lines (as demonstrated in the alternative diagram), taken to be identical in magnitude to motion along the space-axis, it follows that each un-accelerated observer will measure light in its three-dimensional motion as traveling the same distance in space as time elapses in that observer’s reference frame. While the measure of the distance traveled by a beam of light will vary between frames, the rate will always be agreed upon.

The ultimate, or limiting characteristic of the velocity of light is explained with the recognition of the space-axis as the limit of relative motion. If the world-lines of all bodies are, again, taken as having the same extension, but as having varying spatial and temporal components to their relative trajectories, the limiting spatial velocity will be the magnitude of a world-line along the space axis measured in terms of the same magnitude along the time axis. Hence one second in time is the same distance (but in a perpendicular direction) as 300,000 km.

8. Conclusion

The Minkowski Diagrams have been shown to be based on a non-relativistic perspective, a view of developments taken from an absolute projection of the observer’s clock. The result has been a confusion of frames of reference and a parabolic distortion of relativistic relationships which, in the limited realm of Special Relativity, actually remain Euclidean. The use of the Minkowski Diagram has led to significant misconceptions, as with theories involving the light-cones and the geometry of spacetime in the absence of gravitational influences, and to obfuscations, as of the distinctive nature of light.

An alternative diagram has been offered, one that maintains a relativistic frame of reference, and is able as a result to consistently represent other bodies in their relationships to that frame. It has been shown that the alternative diagram is capable, at least in those respects considered, of maintaining an independent conformity with the predicted relationships of relativity, and that it provides a means of comprehending some of the otherwise inexplicable properties of light.

Notes

1. As a matter of convenience t is generally multiplied by c so that space and time can be expressed in distances of the same scale. I prefer instead to calibrate them by giving time in seconds (sec) and space in light-seconds (ls).
2. The Lorentz Transformations are t’ = (t-v)/(1-v2).5 and x’ = (x-vt)/(1-v2).5, with v as velocity proportional to c.
3. If it is considered important to represent the occurrence of an isolated event after the diagram “begins,” or if it’s desired to portray a series of isolated events on the diagram, some of them occurring when the time of the observer is not at t = 0, each event could be placed on a cut-away space-axis above or below the x-axis, labeled t = 2 for example, but at a point given by coordinates like (null,3). A broken line, a diagonal, might be used to show the connection between the occurrence of the event at t = 2 and the observation of the event (at, say, t = 5), without suggesting that the connection is in any way related to a world-line.
4. We could, of course, just as well reverse the frames according to the given proper time of B, and observe A as it appears to B when B is at 3 sec.

References

Minkowski, H., “Space and Time”, 1908, in The Principle of Relativity, H.A. Lorentz, A. Einstein, H. Minkowski, and H. Weyl, trans: W. Perrett and G.B. Jeffery, 1923.
